EnviroNET™ T1/E1 Transport Extenders
T1/E1 Transport Extenders
Patton’s EnviroNET™ Extended Temperature T1/E1 Transport Extenders makes it easy to terminate a T1/E1 in a remote, environmentally exposed location.
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • T1/E1 Port Extension—Extends T1/E1 and fractional T1/E1 circuits over twisted pair up to 8.5km.
  • Extended Temperature -40 to 85°C—Operates in environments that do not have heating or cooling options
  • NEMA 4 Case—Protection against elements such as dirt, rain, sleet, snow, dust, and the external formation of ice on the enclosure
  • Configurable fractional rates—Increase the reach by configuring only the number of DS0s that are being used
  • Remotely Manageable—Console management of local and remote unit without needing a DSLAM or concentrator.
EnviroNET™ T1/E1 Transport Extenders are the ideal choice for users who need to extend their T1/E1 connections to locations where environmental elements cannot be controlled. EnviroNET T1/E1 Transport Extenders extend the reach-and-range of T1/E1 links, delivering rate-adaptive nx64 symmetrical speeds from 64 kbps to 2.048 Mbps over a single twisted pair at distances up to 8.5 km. The T1/E1 Transport Extenders will automatically adapt the line rate based on existing line conditions.

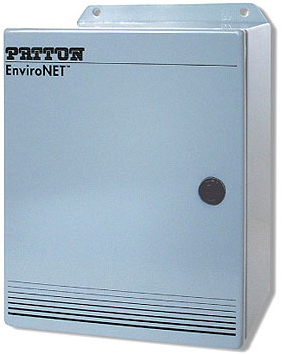

EnviroNET™ T1/E1Transport Extenders are housed in a NEMA 4 enclosure and operate in extreme temperatures, ranging from -40 to 85°C. EnviroNET T1/E1 Transport Extenders are the ideal solution for extending or providing T1/E1 terminations to locations where conditions such as heating, cooling, dust, and moisture cannot be controlled.

Typical applications for Patton’s EnviroNET T1/E1 Transport Extenders include extending T1/E1s beyond a line of sight limited, wireless T1/E1 outdoor location into an end user location.



EnviroNET
Overcome line of sight T1/E1 distance limitations and add flexibility to your wireless T1/E1 network topology with the EnviroNET T1/E1 Transport Extenders. Just co-locate an EnviroNET T1/E1 Transport Extender at the Outdoor Cabinet (ODC) and a Patton Model 3088/K or T unit at the Customer Demarc to extend the reach of the T1/E1 wireless circuit at distances up to 8.5km.



Model #
Std. Indoor Pair
Temperature
Case Rating
Media Type
E1/T1 Interface*
Max Distance (24 AWG)
ET3088/K
3088/K
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
Dual BNC and RJ48C
8.5km (5.3 miles)
EH3088/K
3088/K
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
Dual BNC and RJ48C
8.5km (5.3 miles)
ET3088/T
3088/T
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
RJ48C
8.5km (5.3 miles)
EH3088/T
3088/T
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
RJ48C
8.5km (5.3 miles)


General Product Specifications
ET Extended Temperature Product

Operating Temperature: -40 to 85°C (-40 to 185° F)
Dimensions: 203 L x 114 W x 292 H mm (8.0 L x 4.5 W x 11.5 H in.)
Weight: 3.86 kg (8.5 lbs)

EC Extended Temperature Product Operating Temperature: 0 to 85°C (32 to 185° F)
Dimensions: 203 L x 114 W x 292 H mm (8.0 L x 4.5 W x 11.5 H in.)
Weight: 3.86 kg (8.5 lbs)
EH Environmentally Enhanced Product Operating Temperature: 0 to 50°C (32 to 122°F)
Dimensions: 203 L x 114 W x 292 H mm (8.0 L x 4.5 W x 11.5 H in.)
Weight: 3.86 kg (8.5 lbs)
Interface T1/E1; Dual BNC and RJ-48C
Testing Parameters V.52 511/511E Pattern Generator with RDL; LAL
Clocking Internal, Network or Receive Recover Clocking
Line Coding TC-PAM 16 for rates from 64 kbps to 2.3 Mbps; TC-PAM 32 for rates above 2.3 Mbps; Annex A & B
Line Interface RJ-11; Two Wire (single twisted pair)
Management DIP switch (all models except 3088/I), console, remote console or proxy SNMP from a Central Office ForeFront
Status Indicators LEDs for DSL link, Transmit/Receive data, no signal, loop test errors, and test mode indication
Power Supply External power supply options: Universal 90Ð260 VAC operating from 50Ð60Hz; 120 VAC/60 Hz; 240 VAC/60Hz; -48VDC
Compliance FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC


ET3088/K/UI EnviroNET extended temp G.SDHSL T1/E1 Transport Extender 100-220VAC (-40 to 85C)
ET3088/T/UI EnviroNET extended temp G.SDHSL T1 Transport Extender 100-220VAC (-40 to 85C)
