Model 1058
VDSL High Speed Data & Voice Modem
Deliver high speed integrated services over existing voice-grade wire with Patton's Model 1058 VDSL modems!
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • High-speed symmetrical 12.5 Mbps communications link
  • Extends Ethernet connections up to 4,500 ft
  • Easy 2-wire VDSL connection via built-in RJ-45 or 2-position terminal block
  • Integrated MDI-X switch to allow easy connection to any computer or LAN
  • Passes higher layer protocols and supports 802.1Q (VLAN tagging)
  • Line sharing with built-in POTS/ISDN splitter
  • POTS/ISDN life-line phone link
  • Automatic learning and aging address table
  • Five LEDs monitor power, VDSL link and status, Ethernet link and activity
  • Auto-sensing 10 or 100Base-T and full or half-duplex Ethernet operation
  • No configuration required!

The Patton 1058 VDSL Modem offers a cost-efficient and reliable solution for delivering full service integration over a high-speed, line sharing, symmetrical, 12.5 Mbps link. The Model 1058DV's line sharing capabilities enable users to work on the internet while simultaneously using the phone or fax machine.

The Model 1058D is an economical solution to connecting peered 10/100Base-T Ethernet LANs; reaching remote PCs and equipment; or delivering last-mile ISP services-all at 12.5 Mbps! The Patton Model 1058 offers premium performance over your existing voice-grade telephone wire, eliminating the cost of installing new LAN grade cable or expensive fiber.

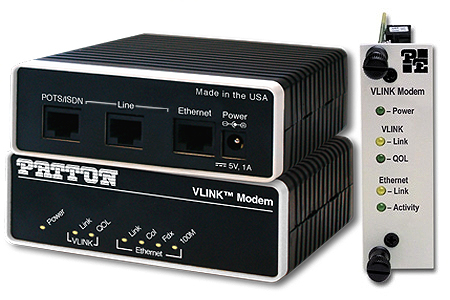

The Model 1058 VDSL Modem is compact, easy to install, and transparent to higher layer protocols. Simply connect the network equipment to the shielded Ethernet RJ-45F jack, the POTS/ISDN cable into the POTS/ISDN RJ-45 port, and the twisted-pair telephone wire to the VDSL RJ-45F jack or terminal block and you're ready to operate. The Model 1058 will auto-sense and configure for 10Base-T or 100Base-T as well as full or half-duplex Ethernet operation. A built in POTS/ISDN splitter provides a life-line phone link. No configuration is required! Whether you are looking to improve your increase the efficiency of your existing wiring infrastructure or delivering integrated services to your customer, the Model 1058 is the perfect choice.


VDSL Interface: RJ-45 (pin 4= tip; pin 5= ring) and two-position terminal block (supports 19-26 AWG)
Ethernet Interface: 8-position shielded RJ-45. Auto-sensing 10/100Base-T with half or full-duplex operation
POTS/BRI ISDN Interface: RJ-45 (pin 4=ring; pin 5=tip)
Protocol: Transparent to high layer protocols. Supports 802.1Q VLAN tagging
Modulation: QAM (Quadrature Amplitude Modulation)
Duplexing Method: FDD (Frequency Division Duplexing)
Frequency Range: VDSL 1-8Mhz; POTS/ISDN: 0-120kHz
Transmission: VDSL line rate: 12.5 Mbps; Data rate: 10 Mbps full-duplex
Surge Supression: VDSL maximum current surge: 20kA (8/20_s) gas tube
Front Panel Indicators: Power, VDSL Link and QOL, Ethernet Link and Activity status
External Power Supply Options: • AC: 120VAC and Universal Power Supply (100-240 VAC)
• DC: -48VDC, -24VDC, and -12VDC (optional upon request)
Compliance: FCC Part 15 Class A; EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC; CE Mark
Temperature: 32 to 122°F (0 to 50°C)
Altitude: 0–15,000 ft (4.5 km)
Humidity: Up to 90% non-condensing
Dimensions: • Standalone: 1.5 H x 4.13 W x 3.75 D in. (3.81 H x 10.5 W x 9.53 D cm)
• Rack card: 3.0 H x 0.83 W x 7.84 D in (7.6 H x 2.1 W x 19.9 D cm)
Weight: • Standalone: 0.4lbs (.18kg) without power supply
• Rack card: 0.3lbs (.14kg) with rear card


1058D/CO/UI CO VDSL NTU, DATA; 120-220 VAC
1058D/CP/UI CP VDSL NTU, DATA; 120-220 VAC
1058D/UI-2PK VDSL NTU, DATA; 2 PK; 120-220 VAC
1058DRC/CO CO VDSL RACK CARD, DATA
1058DRC/CP CP VDSL RACK CARD, DATA
1058DV/CO CO VDSL NTU,D/V,NO PS
1058DV/CO/E 12.5 Mbps Fixed CO VDSL NTU,Data and Voice, no power supply
1058DV/CO/UI CO VDSL NTU,D/V, 120-220 VAC
1058DV/CP CP VDSL NTU,D/V, NO PS
1058DV/CP/120 CP VDSL NTU,D/V, 120 VAC
1058DV/CP/E 12.5 Mbps Fixed CP VDSL NTU,Data and Voice, no power supply
1058DV/CP/UI CP VDSL NTU,D/V, 120-220 VAC
1058DV/EUI-2PK 12.5 Mbps Fixed CP VDSL NTU KIT,Data and Voice, 110-240VAC
1058DV/UI-2PK VDSL NTU,D/V,2 PK,120-220 VAC
1058DVRC/CO CO VDSL RACK CARD, DATA/VOICE
1058DVRC/CP CO VDSL RACK CARD, DATA/VOICE
1058DV/CO/EUI 12.5 Mbps Fixed CO VDSL NTU,Data and Voice, 110-240VAC
1058DV/CP/EUI 12.5 Mbps Fixed CP VDSL NTU,Data and Voice, 110-240VAC
