Model 1068
Variable Rate VDSL Modems
Go faster with more control with Patton's Model 1068. Provide high speed end-to-end connectivity for voice and user-selectable asymmetric or symmetric data over a single, voice-grade, twisted-pair line
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Ethernet Extension--Extends Ethernet distances over 1 mile (1.6 km) over 2-wire 24 AWG unconditioned lines
  • Switch Selectable--Asymmetrical or symmetrical line rates up to 16.67 Mbps!
  • Auto-sensing Full-Duplex Ethernet--Auto-selected 10Base-T or 100Base-TX; supports full or half-duplex Ethernet
  • Integrated MDI-X switch to allow easy connection to any computer or LAN
  • Transparent LAN bridging--Passes higher layer protocols and supports 802.1Q VLAN tagging
  • Plug-and-Play--Makes installation a snap
  • Automatic Learning, Aging, and Filtering--Only allows packets with addresses outside the LAN to be forwarded
  • Full-Service Integration--Supports voice, data, and high quality, real-time, bi-directional streaming video

Patton's Model 1068 VDSL Modems provide up to 16 Mbps of high speed Ethernet and voice services between LANs or other network-enabled devices over a single twisted-pair. The Model 1068 is the only variable-rate asymmetrical/symmetrical standalone modem solution available today. The ability to select various asymmetrical and symmetrical line rates enables the Model 1068 to satisfy a broad range of applications. The Model 1068DV's line sharing capabilities allow users to download files from the Internet, surf the WWW, and answer e-mail messages while talking on the phone or faxing documents.

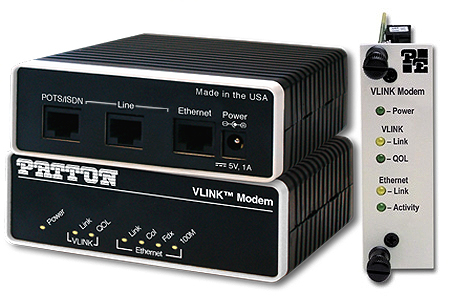

The Patton Model 1068 is easy to configure and install. When configuration of the Model 1068 is necessary, an easily accessible DIP switch is located on the bottom side of the unit. Once configured, simply plug the Ethernet device into the Ethernet port, the voice device into the POTS/ISDN port, and connect power.

The Model 1068 is an effective solution for providing both data and voice services over an existing copper infrastructure and eliminating the expense of fiber cables. If you want to take your network and voice connections farther and faster Patton's VDSL modems are for you!

Just plug, power, and play!

Model

VDSL Interface: RJ-45 (pin 4 = ring; pin 5 = tip) and two-position removable terminal block (supports 19-26 AWG or 0.9-0.4 mm wire)
Ethernet Interface: 8-position shielded RJ-45. Auto-sensing 10/100Base-T with half or full-duplex operation DIP switch capable of disabling 100 Mbps full-duplex for equipment that does not support 802.3X (Pause Packets)
POTS/ISDN Interface: RJ-45 (pin 4 = ring; pin 5 = tip)
Protocol: Transparent to high layer protocol. Supports 802.1Q VLAN tagging
Modulation: QAM (Quadrature Amplitude Modulation)
Duplexing Method: FDD (Frequency Division Duplexing)
Frequency Range: VDSL: 1 - 8 Mhz; POTS/ISDN: 0 - 120 kHz
Transmission: VDSL line rate: Up to 16.67 Mbps; Data rate: Up to 15 Mbps full-duplex
Surge Supression: VDSL maximum current surge: 20kA (8/20_s) gas tube
Front Panel Indicators: Power, VDSL Link and QOL, Ethernet Link and Activity status
External Power Supply : External AC and DC options: 120VAC, and universal input (UI)-100-240 VAC, or optional DC-48 VDC, -24 VDC, and -12 VDC
Compliance: FCC Part 15 Class A; EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC; CE Mark
Environment: Temperature: 32-122°F ( 0-50°C); Humidity: Up to 90% non-condensing
Dimensions: 0–15,000 ft (4.5 km)
Humidity: Up to 90% non-condensing
Dimensions: Standalone - 1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm); Rack Card - 3.0H x 0.83W x 7.84D in (7.6H x 2.1W x 19.9D cm)
Weight: Standalone 0.4 lbs (0.18 kg) without power suppply; Rack card: 0.3 lbs (0.14 kg) with rear card


1068D/CO/UI CO VR VDSL NTU, DATA, 120-220 VAC
1068D/CP/UI CP VR VDSL NTU, DATA, 120-220 VAC
1068D/UI-2PK VR VDSL NTU, DATA, 2-PR, 120-220 VAC
1068DRC/CO CO VR VDSL RACK CARD, DATA
1068DRC/CP CP VR VDSL RACK CARD, DATA
1068DV/CO/E 16Mbps Variable Rate VDSL NTU, CO; RJ45 Line; no power supply
1068DV/CO/EUI 16Mbps Variable Rate VDSL NTU, CO; RJ45 Line; 100-240 VAC
1068DV/CO/TB45/EUI 16Mbps Variable Rate VDSL NTU, CO; RJ45 and Terminal Block Line; 100-240 VAC
1068DV/CO/UI CO VR VDSL NTU, D/V, 120-220 VAC
1068DV/CP/E 16Mbps Variable Rate VDSL NTU, CP; RJ45 Line; no power supply
1068DV/CP/EUI 16Mbps Variable Rate VDSL NTU, CP; RJ45 Line; 100-240 VAC
1068DV/CP/TB45/EUI 16Mbps Variable Rate VDSL NTU, CP; RJ45 and Terminal Block Line; 100-240 VAC
1068DV/CP/UI CP VR VDSL NTU, D/V, 120-220 VAC
1068DV/E-2PK 16Mbps Variable Rate VDSL NTU KIT (CO and CP); RJ45 Line; no power supply
1068DV/EUI-2PK 16Mbps Variable Rate VDSL NTU KIT (CO and CP); RJ45 Line; 100-240 VAC
1068DV/UI-2PK VDSL VR NTU, D/V, 2 PK, 120-220 VAC
1068DVRC/CO CO VR VDSL RACK CARD DATA/VOICE
1068DVRC/CP CP VR VDSL RACK CARD, DATA/VOICE
