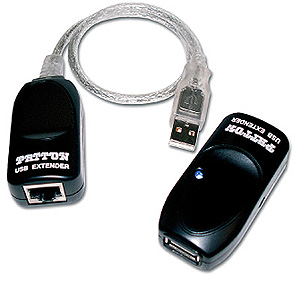

Model 110
USB 1.1 Extender Kit
Extends the distance of a USB device to a host computer up to 200 feet (60 m) over Cat5e cable.
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Fully compliant with USB 1.1 specifications
  • Provides support for any full speed (12 Mbps) or low speed (1.5 Mbps) USB devices
  • No software required
  • USB LED indicator for quick glance status checks


Patton's Model 110 overcomes USB length limitations of 16 feet so that you have the flexibility to locate your USB printer, camera, web cam or any other USB device where you want them. The Model 110 extends the distance of a USB device to a host computer up to 200 feet (60 meters) over Cat5e. The 110 is plug-and-play with absolutely no special software or drivers to install.

 System Requirements:
  • Windows 98SE / ME / 2000 / XP
  • Mac OS 10.X / 9.X
  • One available USB port


Model

Distances
Cat 5 (non-powered) 98 ft (30 m)
Cat 5 (powered)* 165 ft (50 m)
Cat 5e/6 (non-powered) 200 ft (60 m)
Cat 5e/6 (powered)* 263 ft (80 m)
* Requires optional power supply 08055DUI-110K


USB: Fully compliant to USB 1.1
Rates: Full speed (12 Mbps)/Low speed (1.5 Mbps)
Connector: Local Unit: USB Type A Male; RJ-45 • Remote Unit: USB Type A Female; RJ-45
Active Pins: Power 1 & 4; Data 2 & 3
Distances: Cat 5: non-powered 98 ft (30m) • Cat 5: powered 165ft (50m) • Cat 5e/6: non-powered 200 feet (60 m) • Cat 5e/6: powered 263 feet (80 m)
Dimensions: 1.5H x 4.13W x 3.75D in.
3.81H x 10.5W x 9.53D cm)
Operating temp.: 32 to 104°F (0 to 40°C)
Storage temp.: -40 to 185°F (-40 to 85°C)
Protocol: Transparent to high layer protocols. Supports 802.1Q VLAN tagging
Transmission: CopperLink line rate: 12.5 Mbps; Data rate: 10 Mbps full-duplex
Surge Supression: CopperLink maximum current surge: 20kA (8/20_s) gas tube
Front Panel Indicators: Power, CopperLink Link and Error, Ethernet Link and Activity status.
External Power Supply Options: • AC: 120 VAC and Universal Power Supply (100–240 VAC)
• DC: -48 VDC, -24 VDC, and -12 VDC (optional upon request)
Compliance: FCC Part 15 Class A; EMC Directive 89/336/EEC, Low
Voltage Directive 73/23/EEC; CE Mark
Op. Temp.: 32 to 122°F (0 to 50°C)
Humidity: Up to 90% non-condensing
Altitude: 0–15,000 ft (4,572 m)
Dimensions: • Standalone: 1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm)
• Rack card: 3.0 H x 0.83 W x 7.84 D in. (7.6 H x 2.1 W x 19.9 D cm)
Weight: • Standalone: 0.4 lbs (0.18 kg) without power supply
• Rack card: 0.3 lbs (0.14 kg)


08055DUI-110K-EU MODEL 110-KIT AC/DC,UNIVERSAL POWER SUPPLY 120VAC; EUROPEAN
08055DUI-110K-US MODEL 110-KIT AC/DC,UNIVERSAL POWER SUPPLY 120VAC; US
110-KIT 12 Mbps USB 1.1 Extender (Remote and Local) Kit
