- Extends IP Video over 15 times its natural limitations--Extend high resolution IP Video up to 6,000ft over telephone grade twisted pair cabling
- Use with any Camera with an Ethernet interface--Fully compatible with any IP cameras and its managing software
- Transparent to IP Video schemes--Fully transparent to compression schemes such as WMV, MPEG-4 and MJPEG
- Flexible Installation Options--Wall or DIN mountable
- No Configuration Required--Plug-and-Play
- Ruggedized--Housed in a metal enclosure with an operating temperature of -10 to 70°C
Line Rates (AWG 24/0.5 mm) |
Downstream in Mbps |
Distance in feet (meters) |
4
|
6,000 (1,830)
|
16 |
4,000 (1,200)
|
50
|
2,000 (610) |

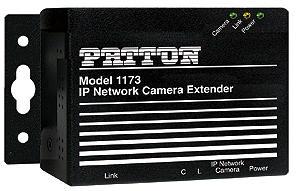

The Patton Model 1173 IP Network Camera Extender enables streaming video rates of up to 50 Mbps over ordinary phone grade twisted pair. Unlike wireless, wire-line extension provides a secure and reliable connection without needing a clear line of sight. Dependable performance and streaming rates up to 50 Mbps, the Model 1173 is the perfect solution for transporting high resolution security video footage.
While the device is plug-and-play, the Model 1173 contains three user-selectable settings for line rates providing for flexibility in achieving the optimal video resolution-distance combination. The Model 1173 is completely transparent to protocols, codecs, and applications ensuring compatibility with any IP camera and its management software.
The Model 1173 IP Network Camera Extender’s are ideal for delivering IP Video links to remote camera installations that are beyond the 328-foot (100-meter) distance limit of Ethernet. The 50 Mbps line rate eliminates bandwidth concerns previously experienced with other copper wired transmission technologies. By utilizing existing voice grade copper pairs, alarm circuits, etc. the expense and hassle of installing new cabling is eliminated.
|
