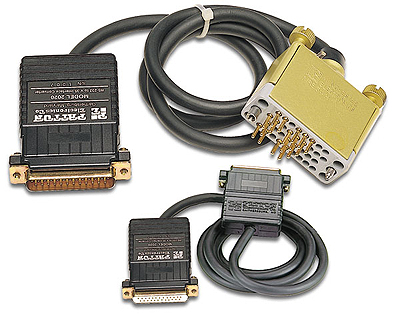

Model 2020 Series
Passive RS-232 to V.35 Converters
Connect RS-232 to V.35 using any gender and connector variation imaginable.
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Bi-directional RS-232 to V.35 conversion
  • Support for data rates to 384 kbps
  • DCE/DTE switchable
  • All appropriate data, clocking & control signals passed
  • Integral connectors (Model 2020N) or equipped with built-in 6 ft (1.8 m) cable

The Model 2020 Series solves one of the most common problems in WAN connectivity-connecting sync RS-232 hardware to sync V.35 hardware. And the Model 2020 series offers many different models to choose from.

The Model 2020N is the perfect solution for converter applications that do not require a built-in cable. It has all the features of the Model 2020 series contained in an ultra-miniature package.

Model

Format: Synchronous, transparent to protocol, full or half duplex; passes all appropriate control signals
Data Rates: Up to 384 kbps
Clocking: Supplied by the connected devices
Connectors: DB-25 male or fem. on RS-232 side, M/34 male or fem. on V.35 side
Configuration: DTE-to-DCE or DCE-to-DTE, strap selectable
Regulatory Approvals: FCC 15A, UL, CE, EN60950


2020F-25F RS-232(FEM)-V.35(FEM) CONV
2020F-25M RS-232(FEM)-V.35(MALE) CONV
2020F-F RS-232 F /V.35 F
2020F-M RS-232(FEMALE TO V.35 MALE CON
2020M-25F RS-232(MALE)-V.35(FEM) CONV
2020M-25M RS232(DB25MALE)-V.35(DB25MALE) CONV
2020M-F RS-232(MALE)-V.35(FEMALE)CONV
2020M-M RS-232(MALE)-V.35(MALE)CONV
2020NF-F RS-232(FEMALE) TO V.35(FEMALE)
2020NF-M RS-232 (FEMALE) TO V.35 (MALE)
2020NM-F RS-232 (MALE) TO V.35 (FEMALE)
2020NM-M RS-232 (MALE) TO V.35 (MALE)
