- Terminates T1/FT1 circuits over a 4-wire RJ-48C interface
- 100-240VAC and -48VDC power options
- Connects to V.35, EIA-530, and 10Base-T interfaces
- Ethernet version for LAN to LAN Bridging
- Common framed n x 56/64 kbps rates up to 1.536 Mbps
- Unstructured rates at 1.544 Mbps
- D4 or ESF framing modes
- Supports AMI or B8ZS/B7ZS line coding
- Software or DIP switch configurable
- Internal, external, or network clocking
- V.54, V.52, and CO Loop and Loop down diagnostics
- Available in Rackmount version
(Model 2710RC)
- Also functions as a high-speed point-to-point modem
- Made in USA

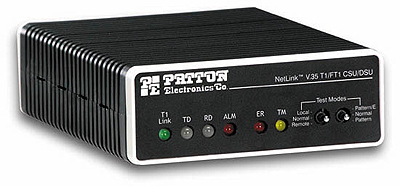

The NetLink Model 2720 Series T1/FT1 CSU/DSU provides high speed WAN connectivity in a compact (1.50H x 4.17W x 5.84D inches) full feature standalone package.The Netlink 2720 is an excellent choice for terminating leased lines, Frame Relay backbones, Internet access, and LAN-to-LAN services. When terminating a T1- dedicated digital circuit, the NetLink 2720 supports nx56/nx64 kbps T1 framing and converts to V.35, RS-530, or 10Base-T Ethernet interfaces. The Netlink 2720 supports D4/ESF framing options and AMI/B8ZS/B7ZS line coding. Data rates, framing, and coding options are programmed by DIP switches or from a VT-100 terminal with menu-driven software. A full range of system and diagnostic features make setup simple and easy. The model 2720/I (10 Base-T Ethernet Bridge) is particulary suited for LAN-to-LAN connection without the need for routers! MAC forwarding and PPP/BCP built-in bridging provides seamless connection over the T1 link.
The PPP/BCP features also enable customers to extend a router's serial interface and connect to a remote Ethernet LAN over the T1 network.The 2710RC is the rack card companion to the 2720. Offering all features found in the 2720, the 2710RC fits in a 19, 2u high rack housing up to 16 rack cards. See the 2710RC web page for more information.
|
