Model 310 Series
CCTV Passive Baluns
Why use expensive and difficult-to-manage coax cabling when you can use inexpensive twisted-pair?

Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Communicate over existing telephone lines or other twisted pair media
  • Connect twisted pair using RJ45 or terminal block
  • Distances up to 2,230 feet (680 meters) over Cat5 cable
  • No AC or power required and supports bi-directional signal conversion

The Model 310M CCTV Modular Balun allows a single composite CCTV video signal to be transmitted via a single unshielded twisted pair for more versatile security and surveillance cabling. Used in pairs, the CCTV Balun eliminates costly and bulky coax cable.



Model



UTP: 24 gauge or lower, twisted pair
Impedance: 100 Ohm at 1 MHz
Max. Capacitance: 20 pf/ft
Attenuation: 6.6 dv/1000 ft @ 1 MHz
BNC: Impedance: 75 Ohm @ 1 MHz (RG-59)
Bandwidth: Video DC to 8 MHz
Maximum Input: 1.1 Vp-p
Impedance: 75 to 100 Ohm
Insertion Loss: Max 2 dB per pair over frequency range from DC to 8 MHz
Return Loss: Greater than 15 dB over the frequency range from DC to 8 MHz
Common mode rejection: Greater than 40 dB at 8 MHz
Active Pins: 8+ 7-

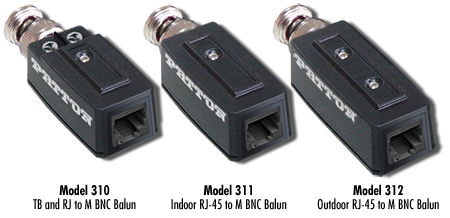

310F CCTV BNC MALE TO RJ45 W/SCREWS; WIRING 8+/7-
310M CCTV BALUN BNC MALE TO RJ45 W/SCREWS; WIRING 8+/7-
311M CCTV BALUN INDOOR BNC MALE TO RJ45; WIRING 8+/7-
312M CCTV BALUN OUTDOOR BNC MALE TO RJ45; WIRING 8+/7-
