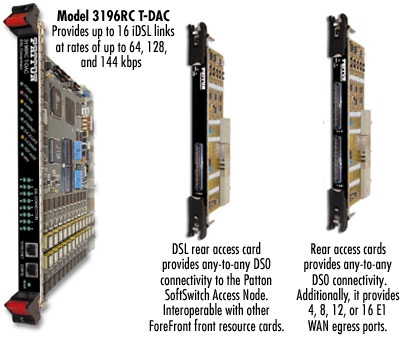

Model 3196RC
16-Port iDSL TDM Concentrator
The Model 3196RC iDSL T-DAC connects 16 users and supports data rates of 64, 128, and 144 kbps. This high density offering provides affordable access concentration to speed-up first-mile networks.
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Up to 16 Ports per ForeFront Card--Get high density per card and lower your cost per port. Easily scale by adding more cards.
  • Speeds of 64, 128, & 144 kbps--Each port is independently selectable for any bandwidth. Distances to 16.4 km/10.1 miles on 0.9 mm/19 gauge copper wire
  • Flexible WAN Egress--Your choice of 4/8/12/16 T1/E1 module, or use the STM-1 uplink for up to 63 E1s over fiber or copper
  • Standards-based line coding--Uses 2B1Q per ETSI ETR-080 and ANSI T1.601 standards
  • Built-in timeslot DACS--Perform any-to-any DS0 mapping between any DSL and WAN port in a ForeFront chassis
  • SNMP/HTTP management--SNMP/HTTP manageable from anywhere in the world including attached CPE units
  • Complete alarm facilities--Configurable alarm reporting with SNMP traps, front panel LEDs, 3-contact relay, and syslog messages


The Model 3196RC iDSL TDM-Digital Access Concentrator, or iDSL T-DAC provides affordable first-mile access concentration for virtually any low speed network application.

Leverage low cost iDSL technology to offer the right service at the right price. Patton has combined iDSL ports, DACS, and WAN up-links and functions into a powerful system operating on Patton’s ForeFront Access Platform

The Model 3196RC, links up to 16 iDSL circuits to multiple WAN modules and offers complete any-to-any DS0 grooming. Each iDSL port offers user selectable data rates of 64, 128, and 144 kbps. With a built in cross connect, each data channel or channel group can be multiplexed onto any up-link or other DSL port—even ports on other 3196RC or 3096RC T-DACS in the same chassis. An integrated SNMP/HTTP-based management system allows for easy configuration via any SNMP enabled NMS.

Each 3196RC T-DAC has its own processing capability built in, offering continuous operation even in the presence of multiple network outages. Use the T-DAC in any Patton 2U, 4U or 6U ForeFront Access System and affordably scale up density to network growth requirements..



The ForeFront FullPipe—configured with 3196RC iDSL T-DACs—provides up to 128 iDSL links in a 4U chassis. E1 or STM-1 interface options make data network integration a snap. Combined with Patton’s , it provides the complete solution.Combined with Patton’s 1082 CPE, it provides the complete solution.
Model 3196RC application diagram


iDSL: B1Q modulation per European Telecommunications Standards Institute (ETSI) as ETR-080 and American National Standards Institute (ANSI) as T1.601
iDSL Distance: 16.4 km/10.1 miles using 19-gauge (AWG)/0.9-mm copper wire
iDSL Connections: Up to 16 ports presented on a 50-pin RJ-21x Telco connector
Transition Modules: Up-link options include 4, 8, 12, or 16 T1/E1 ports
Ethernet Management: Single 10/100Base-T (RJ-45 connector); simultaneous dual redundant operation over backplane
iDSL Modems: Use Patton Model 1082 and 1092A iDSL modems
WAN Clocking Internal, Network (from T1/E1), Building Integrated Timing System (BITS), or via the system back-plane from any other card
iDSL Clocking: Provides clocking to the remote NTUs/Modems
Front Panel Indicators: LEDs for power, CPU, system, Ethernet, clock source, alarms, test mode, DSL, and transition module WAN ports
Management Services: HTTP, SNMP, Telnet Ethernet, RS-232 Console Port, syslog client, remote software upgrades via TFTP
Alarm Reporting: Configurable alarms, remote SNMP traps, front panel LEDs, 3-Contact Relay (Form-C)
Compliance: Safety: UL 60950, IEC 60950 (CB Scheme); EMI: FCC Part 15 Class 'A'; Telecom: TIA/EIA/IS-968 (for T1/E1 interfaces); CE
Environment: Operating temperature: 14 to 140°F (-10 to 60°C); Humidity: 5 to 90%, non-condensing
Dimensions: Front blade: 0.75 H x 10.5 W x 6.3 D in.; (1.9 H x 26.7 W x 16.0 D cm)
Rear blade: 0.75 H x 10.5 W x 3.15 D in.; (1.9 H x 26.7 W x 8.0 D cm)


3196RC T-DACS,FRONT CARD,16 IDSL
3196RC/16I0E T-DACS,16 IDSL & 0 T1/E1
3196RC/16I16E T-DACS,16 IDSL, 16 T1/E1
3196RC/16I4E T-DACS,16 IDSL & 4 T1/E1
3196RC/16I8E T-DACS,16 IDSL & 8 T1/E1
