Model 3324
VDSL Access Concentrator/Switch
The Model 3324 provides connectivity for up to 24 users of voice and data services over existing voice-grade twisted-pair wiring.
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • 24 software selectable asymmetrical or symmetrical
  • Extends Ethernet connections beyond the 328 ft (100 m) limitations over a single pair of voice-grade wire
  • Fully manageable Layer 2 Ethernet switch/Layer 3 switch and routing functionality
  • Compact 1U design
  • Built-in POTS/ISDN splitter for all 24 VDSL ports
  • Local and remote testing and management capabilities
  • Bandwidth management
  • Dual auto-sensing RJ-45 100/1000 BaseT or GBIC for Ethernet uplink or cascading options
  • Cascade up to 4 VDSL concentrators for up to 96 ports
  • Compliant with ETSI, ITU, and ANSI standards


Patton's Model 3324 VDSL Access Concentrator provides a simple and efficient method of delivering voice and high speed data services over existing copper infrastructure. The Model 3324 employs VDSL (very high bit-rate DSL), the fastest digital subscriber line technology. This technology enables carriers and service providers to provide broadband services that previously could not be provided using other forms of DSL. Using a Model 3324 VDSL Access Concentrator with Model 1068 CPEs will provide services for up to 24 users.

The Model 3324 is a fully manageable Layer 2/3 switch with 24 independently configurable VDSL ports. This feature allows service providers to differentiate their high speed data services. The Model 3324 comes standard with two auto sensing RJ-45 100/1000BaseT Ethernet ports or a optional industry standard GBIC (Gig Fiber) uplinks.

The Model 3324DV's unique 1U chassis design includes on-board POTS/IDSN splitters for all 24 VDSL channels. This feature enables the simultaneous use of voice and data over a single 2-wire twisted pair without the additional cost and space of an external splitter panel.

For larger applications, up to four Model 3324s can be cascaded to provide a scalable VDSL solution (96 ports). The Model 3324 24-Port VDSL Access Concentrator is Patton Electronic's flagship product and is compatible with the Patton 1068 VDSL CP units.

Voice and data services over VDSL
Using Patton's VDSL Access Concentrator at a central location, up to 24 full-service links can be routed to various room locations. The CO or ISP would provide the fiber uplink from the network to the Model 3324 location. The POTS lines delivered from the PSTN would be concentrated and delivered to the Model 3324 on an RJ-21 connector. The 3324 combines the POTS and Ethernet signals and sends them over the VDSL links to the individual rooms over existing twisted pair, voice-grade wiring. A 1068CP standalone unit is placed in each room to split the signals back into Ethernet (data) and POTS/ISDN (voice) forms for delivery to the end-user. The Model 3324 allows VDSL services on each channel to be configured at various symmetric and asymmetrical line rates to differentiate services or to increase the distance capabilities.

Model

General Specifications
VDSL Line Interface: 24 ports presented on one RJ-21
POTS-ISDN Interface: 24 ports presented on one RJ-21
Modulation: QAM (Quadrature Amplitude Modulation)

Frequency Range:
VDSL: 1–8 Mhz
POTS/ISDN: 0–120 kHz

Transmission: Software selectable symmetrical and asymmetrical line rates
Power Supply: AC: UI (85–265)
Dimensions: 1.73H x 11.22W x 16.22L in.
(4.1H x 28.5W x 41.2L cm)
Weight: 13 lbs
(0.18 kg)
Operating Temp: 41 to 122°F
(5 to 50°C)
Storage Temp: -4 to 149°F
(-20 to 65°C)
Humidity: 10–90% non-condensing
Protocol Specifications
Ethernet Standards IEEE 802.1d Spanning Tree
IEEE 802.1p Priority Queuing
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad Port Trunking
IEEE 802.3x Flow Control
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3z Gigabit Ethernet
Layer 3 Protocols RFC 791 IP
RFC 793 TCP
RFC 768 UDP
RFC 950 ICMP
RFC 2236 IGMPv1 IP
Multicasting Management Standards Multicasting Management Standards RFC 2068 HTTP
RFC 1157 SNMP/V1
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1757 RMON
CPE Compatibility
The Model 3324 interoperates with Patton's 1068/CP (standalone model) and 1068RC/CP (rack card).




3324DV/GE/UI 24 Port Carrier Class VDSL Aggregator (Voice & Data); UI

VDSL CPE
Model 1058 VDSL High Speed Data & Voice Modem

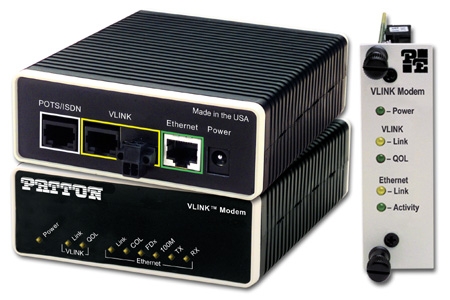

Model 1068 Variable Rate VDSL Modems
