Model 350
Component Video Balun
Why use expensive and difficult-to-manage coax cabling when you can use inexpensive twisted-pair?
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Communicate over existing telephone lines or other twisted pair media
  • Supports 480i/p, and hi-definition (HDTV) formats 720p, 1080i, and 1080p
  • Distances up to 1,000 feet (305 meters) over Cat5 cable

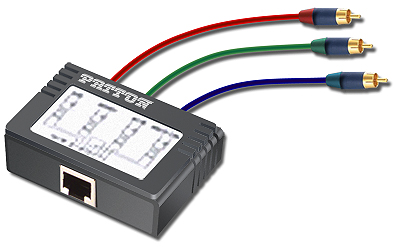

Patton component video + digital audio balun allows one component video (YPbPr or RGB) signal and one digital audio signal to be transmitted via one Category 5 Shielded twisted pair cable for more cost-efficient cabling. Used in pairs, the Model 350AV supports 480i/p, 720p and 1080i/p video formats for hi-definition (HDTV) video applications.

Model



UTP: 24 gauge or lower solid copper twisted pair wires impedance: 100 ohms at 1 MHz
Max. capacitance: 20 pf per foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Coax (RCA): Impedance: 75 ohms at 1 MHz 30VA: 86ft (28m)
Connectors: Three RC A-M connectors: Green (Y), Blue (Pb) , Red (Pr), One (1) RCA-F connector for digital audio to RJ45 Socket for twisted pair
Pin Configuration: Red (Pr): Pins 7+, 8- Green (Y): Pins 6+, 3-; Blue (Pb): Pins 2+, 1-;Digital Audio: Pins 5+, 4-
Distance: 480i/p: 1,000 feet (305 meters). 720p and 1080I: 500 feet (152 meters). Digital Audio: 600 feet (182 meters)
