Model 330 Series
CATV Passive Baluns
Why use expensive and difficult-to-manage coax cabling when you can use inexpensive twisted-pair?
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Communicate over existing telephone lines or other twisted pair media
  • Connect twisted pair using R-J45 or terminal block
  • Distances up to 328 feet (528 meters) over Cat5 cable

Pattons 330 Series CATV Baluns enable one CATV, VHF, and FM video signal to be transmitted via one twisted-pair cable in a point-to-point connection. The CATV balun saves the cost of installing expensive and bulky coax cable and is a smart, fast way of connecting RF video equipment to TVs, monitors, and other RF equipment.


Model




UTP: 24 gauge or lower, twisted pair
Impedance: 100 Ohm
Pins: 7 & 8
F Connector: Impedance: 75 Ohm
Bandwidth: 5 to 862 MHz
Insertion Loss: Less than 3 dB (5 dB max. for CATV 2-27)
Common mode rejection: More than 20 dV from 40 to 862 MHz
Max. Distance: 197 feet (60 meters) over Cat5; 328 feet (100 meters) with amplifier

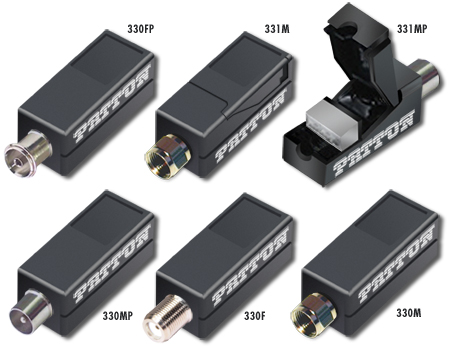

330F CATV BALUN FTYPE MALE TO RJ45 JACK, WIRINING 8+/7-
330MP CATV BALUN PAL MALE TO RJ45 JACK, WIRING 8+/7-
331F CATV BALUN FTYPE FEMALE TO TOOLESS IDC W/COVER
331FP CATV BALUN PAL FEMALE TO TOOLESS IDC W/COVER
331M CATV BALUN FTYPE MALE TO TOOLESS IDC W/COVER
331MP CATV BALUN PAL MALE TO TOOLESS IDC W/COVER
