Model 6511
Matrix Switch with Gigabit Ethernet
Move data rapidly with the Patton 6511 Matrix Switch and get non-blocking any-to-any TDM access, Packet Switched Ethernet, and high-speed trunking...all in a single card
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Non-Blocking I/O Fabric--Get dedicated connectivity to every input and every output port while grooming TDM or switching packet data
  • Integrated STM-1/OC-3 DACS--Resolve traffic down to 64 kbps timeslots, switch any timeslot to any port or loop it back out the same port.
  • Optical or Electrical Egress--Choose between short-haul electrical BNC or intermediate-range optical SC connectors
  • Hot Swappable and Redundant--For critical applications use dual 6511s and get 1+1 redundancy. Hot-swap cards for fast maintenance and quick upgrades.
  • Redundant Packet Switching--Reliable packet switching architecture ensures redundant paths for deploying mission-critical applications to any port.
  • SNMP/HTTP Network Management--Get fault detection and resolution standard. Use the embedded HTTP/SNMP agent to manage the Model 6511 from anywhere in the world.

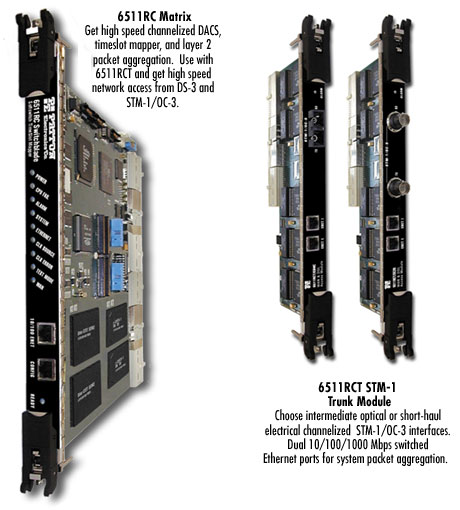

The Model 6511 Matrix Switch is an integrated multimedia switching engine complete with a digital access cross-connect, high-speed STM-1/OC-3 trunk interface, wire-speed Ethernet packet switch, and GUI management system.

The Model 6511’s flexible channel switching fabric allows non-blocking switching from any input to any output. The Channelized STM-1/OC-3 interface integrates into a SDH/SONET network, enabling users to channelize an STM-1/OC-3 down to 64 kbps timeslots. With full grooming capability the Model 6511 DACS allows any-to-any TDM mapping and can place any channel from any card onto any port.

Combined with the ForeFront AIS Packet-Switched Backplane, the Model 6511 redundantly interconnects every slot, at wire-speed, and aggregates traffic from each system card onto dual-switched uplink Ethernet ports. With increased performance and throughput, the packet backplane allows non-blocking access to the Model 6511, other system cards, and the uplink ports.

With the Forefront architecture, TDM and packet can be used simultaneously and to full capacity. In a system loaded with dual 6511’s, the high speed channel switching and packet backplane on the Model 6511 offers 1+1 redundancy.

Management is a snap with VT-100, TELNET, SNMP and WEB options. Manage traffic out-of-band via dual 10/100/1000 Ethernet ports or terminate PPP/FR via timeslots in-band. With the integrated L2/L3 switch the Model 6511 provides managment access to all cards within the chassis

Master time and space with the Model 6511 Matrix Switch and realize an unequaled level of density and control over the new convergent network.


Patton’s ForeFront Access Solutions for DSL address the new point-of-presence requirements demanded by today’s providers operating IP and TDM networks. Using a modular approach, the ForeFront AIS includes all system components to provide DSL access. Fully redundant power and integrated cooling enable the lightweight chassis to scale for density and services. DSL line cards offer the latest ITU/ETSI G.SHDSL technology for true standards based connectivity. Grooming facilities and high speed softswitch allow any-to-any cross-connecting to T1/E1s or STM-1/OC-3 interfaces. Integrated management gives command over the entire system end-to-end and offers tools for fault detection, isolation, and correction.
Model 3096RC application diagram




Line Framing: DS1-SF, SLC-95, ESF, E1–G.704 basic, CRC-4 multiframe (G.706 framing), DS3–M23, C-bit parity formats, E3–G.751, G.832 E3, STM-1–G.707, SONET/STS-3–Per ANSI T1.105-2001
Mapping: DS1–VT1.5 -> STS-1 SPE, TU-11 -> STM1/VC3, TU-11 -> TUG3 -> STM1/VC4, TU12 -> STM1/VC3, TU-12 -> TUG3 -> STM1/VC4; E1–VT2 -> STS1 SPE, TU-12 -> STM-1/VC3, TU-12 -> TUG3 -> STM-1/VC4; DS3–DS3 -> VC3 -> AU3 -> STS-1 SPE; STM-1 –G.707; SONET/STS3– Per ANSI T1.105.02-2001
Clocking: STM-1–G.813; STS-3 - ANSI T1.101-1999, T1.105.09-1995, G4-1244
Error Counts: G.821 & G.826 (ES, SSES, US, EB, and BBE; T1.231 & GR-253-CORE ES, SES, US and SEFS
Line Testing: PRBS per ITU-T 0.151 & 0.152; DS3/E3 Diagnostic & Line Loopback; DS2 Demux Loopback; T1/E1 Diagnostic & Loopback
Ethernet Ports: Dual 10/100/1000 Base-T (RJ-45 connector)
STM-1/STS-3 Ports Single mode dual SC fiber (20km) per G.957 using 1310 nm lasers per G.652 or Dual 75-Ohm BNC per G.703
LED Indicators: LEDs for power, CPU, Dual Ethernet, test mode, egress synchronization, egress trunk status
Management Services: HTTP, SNMP, TELNET Ethernet, RS-232 Console Port, SYSLOG Client, Remote Software Upgrade via FTP
Alarm Reporting: Configurable alarms; Remote SNMP Traps; Front Panel LEDs
Compliance: afety: UL/CSA per UL1950 (METS) Canadian cMET and CS-03. EMC Directive 89/336/EEC, FCC Part 15, CE Mark, CTR12, CTR13 FCC Part 68. Laser Safety: Class 1, IEC-825-1, 1993
Environment: Operating temperature: 0–40°C (32–104 °F) Humidity: 5–90% non-condensingn
Environment: Operating temperature: 14 to 140°F (0 to 60°C); Humidity: 5 to 90%, non-condensing
