- VPN Tunnels — Standard IPSec with AH and ESP ensures maximum protection when traversing unsecured networks.
- Strong Encryption — DES, 3DES, and AES offer standards based encryption algorithms from 56 to 256 bits.
- QoS/CoS Profiles - Configurable burst tolerance, bandwidth guarantees plus reduce per flow traffic jitter as required by the application.
- Configurable Security Profiles - Built-in IP address and IP port filtering, ACLs and DoS attack detection creates a comprehensive security environment.
- Enhanced IP Services - DNS resolver and relay, NAT/NAPT, dynamic DNS, and DHCP server, eases integration.
- 10/100 Ethernet - Dual 10/100 Ethernet and 5 port Ethernet switch.
- SNMP/HTTP Management - Easily manage the IPLink VPN Routers via a simple web browser interface.

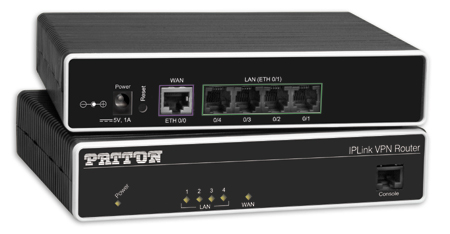

 The IPLink Managed VPN Routers are a family of next generation appliances that address both the security and the traffic prioritization needs of enterprises. VPN routers enable the secure communication of remote offices, home offices, and mobile users across insecure IP networks such as the Internet. IPLink VPN Routers take it one step further and integrate quality of service (QoS) to optimize business traffic flows, allowing dual use (business and leisure) of broadband connections without impacting the quality of business communications.
IPLink VPN Routers implement a comprehensive security environment. It all starts with IPSec. By supporting ESP as well as AH, IPLink VPN Routers provide data integrity, authentication, anti-replay and data confidentiality to any traffic flow. DES, 3DES, and AES provide standard encryption up to 256 bits. Firewall capabilities of the IPLink VPN Routers include Access Control Lists (ACLs), IP address and port filtering, and protection against Denial of Service (DoS) attacks. Likewise, PPPoE protocols include support for PAP and CHAP authentication.
QoS features include ToS/DiffServ marking and the configuration of eight service class tags per IEEE 802.1p/Q. With traffic scheduling and shaping, create dedicated bandwidth guarantees, configurable burst tolerance, and policing to include excess traffic discard. IP fragmentation is configurable to help minimize jitter in traffic flows.
Advanced IP features include RIPv1 & RIPv2 routing and static route configuration. Static and dynamic NAT, NAPT, DNS resolver and relay, dynamic DNS, and DHCP server further add to the capabilities of the IPLink VPN Router. All IPLink VPN routers can be managed via a web browser (HTTP), command line interface (Telnet), or an SNMP management platform.
IPLink VPN Routers are next-generation security appliances that address the needs of business users by integrating QoS into a one-box solution. By including QoS, broadband connections can be put to dual-use without impacting the quality of business data flows.
|
| WAN
Ethernet port: |
2802 & 2805:
10/100BaseT (RJ-45 connector); auto-negotiating; half/full duplex operation
with automatic MDI/MDI-X |
| LAN
Ethernet Ports: |
2802: 10/100BaseT
(RJ-45 connector); auto-negotiating; half or full duplex operation with
automatic MDI/MDI-X
2805: 4 port 10/100BaseT switch (RJ-45 connector); auto-negotiating;
half/full duplex operation with automatic MDI/MDI-X |
| Management: |
CLI via Telnet; TFTP
for Software upgrade and configuration upload; SNMPv1; HTTP/web browser
|
| Protocol: |
IP (RFC 741), TCP (RFC
793), UDP (RFC 768), ICMP & ICMP Redirect (RFC 792), ARP (RFC 826). IP Router
with RIPv1 (RFC 1058), RIPv2 (RFC 2453), programmable static routes. Integrated
DHCP Server (RFC 2131), DNS Relay (RFC 1631), IEEE 802.1p VLAN Tagging,
NAT/NAPT (RFC 1631/2391) |
| Security:
|
IPSec including
AH and ESP. DES, 3DES, and AES encryption. Access Control Lists (ACLs). IKE pre-shared keys.
IP port and address filtering both by source and destination. DoS Detection.
Password protected system management with a username/password for console
and virtual terminal. |
| Power
Supplies: |
External universal
90-260 VAC input or 48 VDC input. (Optional Internal universal 90-260 VAC
input.) |
| Compliance: |
CE Mark; Safety:
UL60950-1, CSA 22.2 6095001, IEC/EN60950-1. Universal AC units are US NRTL
Listed; EMC Emissions: FCC Part 15 Class A; EN55022 Class A; EMC
Immunity: EN55024 |
| Environment: |
Operating temperature:
0-40°C (32-104 °F); Humidity: 5-80% non-condensing |
| Dimensions
& Weight: |
7.3W x 1.6H x 6.1D
in. (18.5H x 4.1W x 15.5D cm)
30.5 oz./500g (models with internal power); 24.4 oz./400g (models with external
power; no power supply) |
|
