| DSL: |
G.991.2 ITU G.SHDSL Annex A and Annex B, G.994.1 G.Handshaking. nx64 data rates over 2-wire full-duplex to 2.3 Mbps, symmetrical, TC-PAM encoding. Distance of 32,000 ft (9.8 km) at 192 kbps to 18,000 ft (5.6 km) at 2.312 Mbps. |
| DSL Connection: |
Shielded RJ-11F isolation per IEC 950, two-wire, 135-Ohm |
| Ethernet Connection: |
10/100Base-T, auto-sensing, full/half-duplex operation, built-in MDI-X |
| Serial Interface: |
V.35—M/34F, X.21—DB15F (DCE/DTE), T1—RJ48C, E1—RJ48C and Dual BNC |
| FR to ATM Support: |
FRF.5 (Frame Relay Network Interworking), FRF.8(Frame Relay Service Interworking). LMI with ITU Q.933, ANSI T1.617, and Cisco LMI implementation. |
| Management: |
EIA-561 RJ-45 RS-232, VT-100 CLI, TELNET, Embedded WEB/HTTP, SNMP, Logging or SMTP on events: POST, POST errors, line/DSL, PPP/DHCP, IP MPOA AAL5 and Bridged encapsulation RFC 2684 and RFC 1577 IPoATM. LLC/VC Mux support. |
| ATM Support: |
UNI 3.0, 3.1, and 4.0 ATM QoS with UBR/CBR/nrt-VBR/rt-VBR and per- VC queuing and shaping. Peak cell rate shaping on a per-VCC basis up to 32 active VCCs I.610 OAM network management including AIS/RDI, loop-back and performance monitoring. |
| Protocol: |
Enhanced ILMI 4.0 for auto-configuration of ATM PVCs, IP (RFC 741), TCP (RFC 793), UDP (RFC 768), ICMP (RFC 950), ARP (RFC 826). IP Router with RIP (RFC 1058), RIPv2 (RFC 2453), OSPF (RFC 2328) Integrated relay agent (RFC 2132/RFC 1542) with 8 address pools. DNS Relay. IGMP v1 and v2. IP-in-IP (RFC-2003) encapsulation, Ethernet Bridging. NAT/NAPT with integrated application support, MultiNat with 1:1 mapping, Many:1, Many:Many mapping, NAT Port/IP redirection and mapping. |
| Security: |
DoS Detection/protection. Intrusion detection, Logging of session, blocking and intrusion events and Real-Time alerts, Password protected system management with a username/password for console and virtual terminal, Packet filtering firewall for controlled access to and from LAN/WAN. Support for 255 rules in 32 filter sets. 16 individual connection profiles. Access list determining up to 5 hosts/networks which are allowed to access management system SNMP/HTTP/TELNET |
| Indicators: |
13 LEDs: Power, DSL Link; Sync Serial: TD, RD, CTS, DTR; LAN: TX, RX, 100M Link; Status: NS, ER, TM. |
| Power Supply: |
Internal universal 90–260 VAC input or 48 VDC input. Optional external power available. |
| Compliance: |
FCC Part 15A, FCC Part 68 (3086FR/RIT and /RIK), CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC, EN60950, EN55022 (CISPR 22) |
| Environment: |
7.3" x 6.6" x 1.62" (185mm x 168mm x 41mm). |
| Compliance: |
Safety: UL/CSA per UL1950 (METS) Canadian cMET and CS-03. EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC (EN 60950), FCC Part 15, CE Mark, CTR12, CTR13, FCC Part 68. |
| Environment: |
Temperature: 32–122°F (0–50°C); Humidity: 5–90%, non-condensing |
| Dimensions: |
7.3” x 6.6” x 1.62” (185mm x 168mm x 41mm). |
|

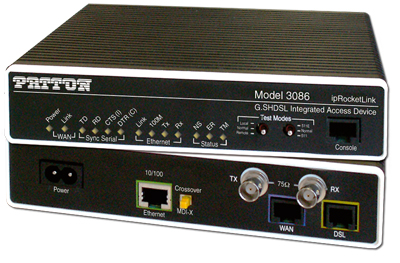

The Patton Model 3086FR IAD combines the latest advances in high speed DSL technology, G.SHDSL, with a potent IP, FR, PPP and ATM core facilitating seamless connection of legacy frame relay devices as well as routed IP services to high speed ATM networks.
