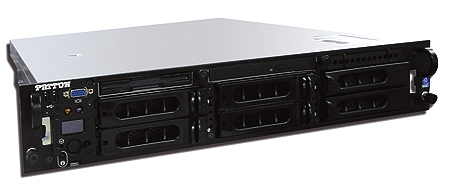

SmartLink™ 4250
High-Availability IP PBX
Patton’s SL4250 is an IP PBX supporting high-availability, redundant configurations so enterprises can confidently transition to VoIP and reap the benefits of voicemail/e-mail integration, voice trunking and a single network to manage.

Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • High Availability—Add a second SL4250 to create a redundant high-availability PBX configuration, guaranteeing phone system availability.
  • Full-Function Enterprise PBX—Complete call control, voicemail and administrative systems including multiple automated attendants, music on hold, call park and call forwarding.
  • Geographically Unified Calling Features—All employees with an Internet connection can have access to the same PBX features from any location.
  • Hunt Groups and ACD—With hunt groups and ACD, calls can be queued so a customer will always have someone to talk to.
  • Unified Messaging—With voicemail to e-mail integration, forward your voice mails to your in-box.
  • Web-Based Self-Administration—Users can specify call forwarding, call routing and voicemail preferences thru the web interface

The SmartLink™ 4250 is a full function IP-PBX designed to meet the needs of medium to large enterprises. It provides the features of a traditional PBX with the benefits of VoIP such as soft clients and voicemail to e-mail integration. The SL4250 is available in 75 to 1,000 user license versions, coming with common PBX/Key System features such as an auto-attendant, configurable call routing, music on hold, call-forwarding, music on park, hunt groups, and much more.

The web-based administrative interface permits quick and easy configuration of dialing plans, auto attendants and other PBX features. Office users of the SL4250 IP-PBX benefit the most from the voicemail to e-mail integration. An easy to use web page is available to create and manage personal voicemail folders. Menu options facilitate the setup of e-mail notification and even email delivery of the message in easy to open .wav file format. Multiple greetings can be recorded and then activated via a drop drown box.

Enterprises operating in multiple locations can leverage their existing data intranet/VPN investment to simplify extension dialing. Every employee can be reached via a 3-digit extension by a simple web page configuration of the dialing plan. Intra-enterprise long-distance phones bills drop to zero by using the VPN. At the same time, additional savings can be achieved both by reducing the number of local PSTN connections, as well as by leveraging the remaining local PSTN connections in remote offices to effect a least cost routing of long distance calls to the remote office area code and thereby performing a long distance toll by-pass.

When combined with a Patton SmartNode or SmartLink device, the SL4250 IP-PBX provides VoIP services to analog phones, faxes, and legacy PBX systems that are not able to support newer VoIP technologies.

SmartLink 4250 application diagram



Protocol: IETF SIP RFC3261—SIP
Call Routing/Call Processing: Automatic call route selection • User and Administrator web-based configuration • Call admission control • Dynamic call forwarding • Hotline/Ring down • Hunt groups • Message waiting indication • Multi-site/Multi-location • Multi-station appearan\ 0pt56 yuju ujju
I"ce • Local/Remote stations • Outbound Call blocking/Toll restriction • Out-of-band DTMF signaling • Phone number to SIP address alias facility • System security • Web services APIs for configuration server • User forwarding through GUI • Backup configuration via the GUI • Emergency routing • Attendant console • Direct call pick-up • Call Park/Retrieve with music on hold
Media Server: HTTPS-based message storage • Customizable voicemail greetings • Operator (zero out) • Login to VM via user greeting • User distribution lists • Change VM password through GUI
Auto Attendant: Alpha-dialed number confirmation • Customizable main greeting • Dial by extension • Dial by Name • Operator (zero out)
Minimum Hardware Specification: Pentium 4, 2.8 GHz or later/faster CPU • 1GB RAM • 80GB HD • CD-ROM Drive • Dual 10/100 Ethernet RJ-45 Interfaces
Power supply: 256Mb DDR266
Compliance: UL/CUL/CSA • CE Mark • CE Safety • FCC Part 15, Class A
Operating System: CentOS 4.x
Operating Temperature: 32–122°F (0–50°C)
Operating Humidity: Up to 90% relative humidity, non-condensing
Weight: 940g
Operating Humidity: 0-90% relative humidity, non-condensing
