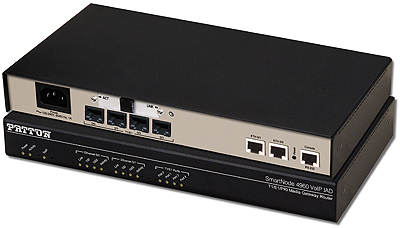

SmartNode™ 4960 G.SHDSL
Multiport PRI VoIP IAD with G.SHDSL.bis Interface
Streamlined for business trunking and corporate VoIP access, the SmartNode 4960 PRI VoIP gateway integrates G.SHDSL.bis broadband access to deliver converged voice and data services that exceed ISDN standards.
Need Help? Call VitaIP at +240 643 2122 or e-mail sales@VITAIP.com



  • Up to 120 VoIP Calls--Up to 120 simultaneous voice or T.38 fax calls with one to four T1/E1/PRI ports and dual Gigabit Ethernet ports. Use any CODEC or fax on any port, any time.
  • G.SHDSL.bis Broadband Access--Complete Access Router with integrated G.SHDSL.bis WAN interface. Up to 5.7 Mbps symmetrical throughput, supporting ATM QoS. Supports multiple PVC and DSLAM interoperability.
  • Integrated SIP and T.38--Softswitch certified signaling support between all T1 RBS CAS, ISDN PRI, Q.SIG, SIP, H.323 and MGCP/IUA protocols.
  • Transparent Telephony Features--Handles complex number manipulation and mapping scenarios for most seamless integration with existing infrastructure, CLIP, CLIR, hold, AOC transfer and much more.
  • Toll-Quality VoIP--Advanced traffic management and shaping, combined with Patton’s patent-pending DownStream QoS™ enforce uninterrupted toll-quality voice over best-effort networks.
  • Management & Provisioning--Web-based management, SNMP, command line interface. Automated provisioning for easy large-scale deployments.


The SmartNode 4960 is the ideal CPE for ISDN PRI business trunking or corporate VoIP access. Part of the proven market-leading SmartNode VoIP product family, the 4960 Series features models from 15 to 120 calls to fit the requirements range of medium sized enterprises.

In a single box, it combines broadband access and voice-over-IP, and—thanks to IGMP v2/v3 proxy functionality—also video delivery. Annex F & G support enables throughput of up to 5.7 Mbps on the integrated 2-wire G.SHDSL modem, and interoperability covers all major G.SHDSL COs. This is triple-play at your fingertips!

The four ISDN PRI interfaces are software selectable user or network side, and they connect to any PBX or PSTN switch. Call routing options include conversion from ISDN to SIP or H.323, but also call switching between the four PRI interfaces—and even supports calls from SIP to SIP.

Like every SmartNode, the 4960 Series models are state-of-the-art VoIP gateways with outstanding interoperability for fax (T.38 and G.711 fallback) and voice. SmartNode products provide seamless network integration, continuous trouble-free operation and cost effective deployment to protect your investments for the future.

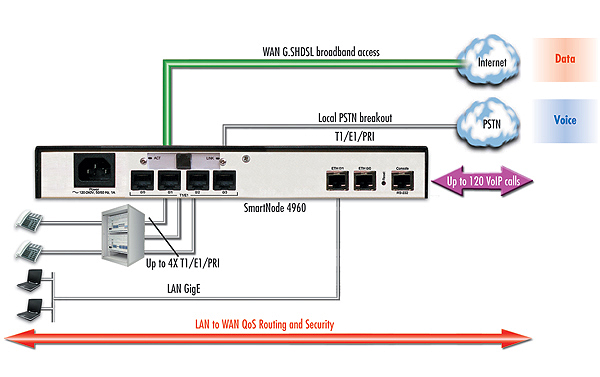

SmartNode 4960 G.SHDSL application diagram


Voice Connectivity Up to four software selectable T1/E1/PRI ports • Signalling support (ISDN DSS-1, NI-2, Q.SIG; CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink) • SIPv2 & MGCP/IUA, H.323v4 • ISDN AOC/ECT • ISDN speech, audio & data (Fax Gr 4, UDI 64, • RDI 64); ISDN supplementary services
Broadband Access 2-wire G.SHDSL ITU-T G.991.2, Annex A, B, F, G • Up to 5.7Mbps • PPPoE • 8 PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs)
Voice processing Codec G.711 a-law/mu-law, G.723, G.729ab, • G.726, G.727. T.38 fax relay (9.6 k, 14.4 k) • G.711 transparent fax and bypass
Data interfaces Dual 10/100/1000 TX Ethernet Ports • Autosensing • Auto-MDI • Full-duplex
IP Routing Complete IP access router • DHCP Client & server • Packet fragmentation • Static firewall, NAT, NAPT RFC 1631 access control lists • DMZ port
IP Quality of Service Voice priority • DownStreamQoS™ • Traffic management, shaping and policing • IEEE 802.1p, TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion 4,096
Management Web/HTTP, CLI with local console and remote Telnet access • TFTP configuration & firmware loading • SNMP MIB II and product MIB • Secure autoprovisioning for both firmware and unit/subscriber configuration • Built-in diagnostic tools (trace, debug, call generator)
Power & Packaging Power: 100-240 VAC (50/60 Hz)
Power dissipation: 15W
Operating Environment Desktop metal chassis Dimensions: 11.0W x 1.5H x 7.0D in. (28.0W x 3.9H x 18.0D cm) Weight: < 30 oz (850 g) Internal Power: 100–240VAC (50/60Hz) Power Consumption < 15W
Compliance EMC compliance: EN55022 and EN55024
Safety compliance: EN 60950
CE compliance FCC Part 15 Class A; Part 68; CS-03


SN4960/1E15VG/UI SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP Channels, upgradeable to 30. G.SHDSL interface, Internal UI Power
SN4960/1E24VG/UI SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels, upgradeable to 30. G.SHDSL interface, Internal UI Power.
SN4960/1E30VG/UI SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP Channels; non-upgradeable. G.SHDSL interface, Internal UI Power.
SN4960/4E120VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 120 VoIP channels; non-upgradeable, G.SHDSL interface, Internal UI Power.
SN4960/4E15VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels. G.SHDSL interface, Internal UI Power.
SN4960/4E24VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP channels; field upgradeable to a max of 60 channels. G.SHDSL interface, Internal UI Power.
SN4960/4E30VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels. G.SHDSL interface, Internal UI Power.
SN4960/4E48VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels. G.SHDSL interface, Internal UI Power.
SN4960/4E60VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 60 VoIP channels, non-upgradeable, G.SHDSL interface, Internal UI Power.
SN4960/4E96VG/UI SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, UI power, 96 VoIP channels; field upgradeable to a max of 120 channels. G.SHDSL interface
